Towards a Generic Research Data Commons: A highly scalable standards-based repository framework for Language and other Humanities data


Download as PDF

This presentation was delivered by Peter Sefton at the Open Repositories 2023 conference in South Africa on 2023-06-14 in the Presentations: Discipline specific systems with FAIR principles session.

This contains the slides and complete speaker notes, which have been edited after the conference.

We will present a standards-based generalised architecture for large-scale data* repositories for research and preservation illustrated with real-world examples drawn from a number of languages and cultural archive projects. This work is taking place in the context of the Australian Humanities and Social Sciences Research Data Commons, particularly the Language Data component thereof and the long-established PARADISEC cultural archive. The standards used include the Oxford Common File Layout for storage, Research Object CRATE (RO-Crate) for consistent linked-data description of FAIR digital objects, and a language data metadata profile to ensure long-term interoperability between systems and re-usability over time. We also discuss data licensing and authorization for access to non-open resources. We suggest that the approach shown here may be used in other disciplines or for other kinds of digital library, repository or archival systems.

*The submitted abstract did not have the word data here - added for clarity

By: Peter Sefton (University of Queensland), Simon Musgrave (University of Queensland & Monash University) & Nick Thieberger (University of Melbourne)


The Language Data Commons of Australia (LDaCA) and Australian Text Analytics Platform (ATAP) projects received investment (https://doi.org/10.47486/DP768 and https://doi.org/10.47486/PL074) from the Australian Research Data Commons (ARDC). The ARDC is funded by the National Collaborative Research Infrastructure Strategy (NCRIS).   ARC LIEF LE210100013 (2021-2024) Nyingarn: a platform for primary sources in Australian Indigenous languages

This work is supported by the Australian Research Data Commons.


 With thanks for their contribution: Partner Institutions:

The Language Data Commons of Australia Data Partnerships (LDaCA) and the Australian Text Analytics Platform (ATAP) are building towards a scalable and flexible language data and analytics commons. These projects will be part of the HASS (Humanities and Social Sciences) and Indigenous Research Data Commons (HASS+I RDC).

The Data Commons will focus on preservation and discovery of distributed multi-modal language data collections under a variety of governance frameworks. This will include access control that reflects ethical constraints and intellectual property rights, including those of Aboriginal and Torres Strait Islander, migrant and Pacific communities.

The platform will provide workbench services to support computational research, starting with code-notebooks with no-code research tools provided in later phases. Research artefacts such as code and derived data will be made available as fully documented research objects that are re-runnable and rigorously described. Metrics to demonstrate the impact of the platform are projected to include usage statistics, data and article citations. These projects are led by Professor Michael Haugh of the School of Languages and Cultures at the University of Queensland with several partner institutions.

We would like to acknowledge the traditional custodians of the lands on which we live and work and the importance of Indigenous knowledge, culture and language to these projects. Peter Sefton lives and works on Wiradjuri land, and for Nick Thieberger and Simon Musgrave, it’s the land of the Kulin nation.

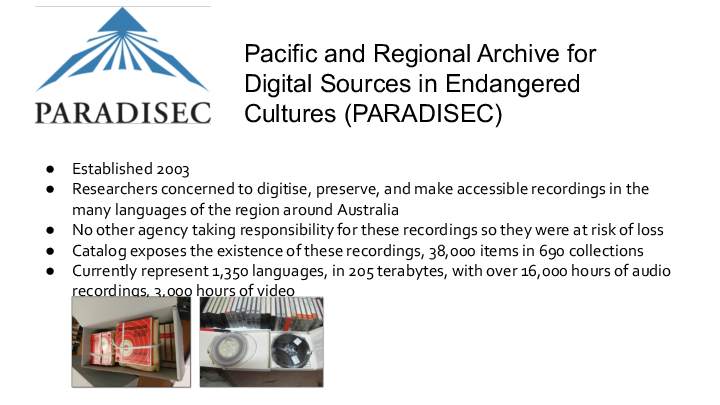

Pacific and Regional Archive for Digital Sources in Endangered Cultures (<a href="/resources/general-resources/glossary/#paradisec" title="Pacific and Regional Archive for Digital Sources in Endangered Cultures" target="_blank"
  >PARADISEC</a
>) Established 2003 Researchers concerned to digitise, preserve, and make accessible recordings in the many languages of the region around Australia No other agency taking responsibility for these recordings so they were at risk of loss Catalog exposes the existence of these recordings, 38,000 items in 690 collections Currently represent 1,350 languages, in 205 terabytes, with over 16,000 hours of audio recordings, 3,000 hours of video

PARADISEC is an online archive of cultural data which has been maintained for twenty years, in this presentation, we will look at some of the lessons learned from PARADISEC. In summary – the PARADISEC approach to simple data and metadata storage is something we want to continue in LDaCA, while the high cost for PARADISEC of commissioning and maintaining its own software stack is something we want to address by taking a more standards-based approach to managing language and other data over the coming decades.

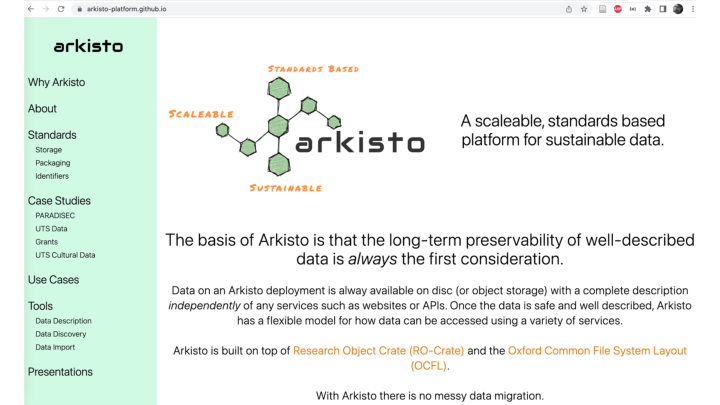

The Arkisto platform started in 2019 as a way to capture the lessons of PARADISEC and other projects such as Alveo (another language data project similar in scope to LDaCA) which was presented at OR 2014: Sefton PM, Estival D, Cassidy S, Burnham D, Berghold J. The Human Communication Science Virtual Lab (HCS vLab): A repository microclimate in a rapidly evolving research-ecosystem. In: Open Repositories 2014. Helsinki; 2014 [cited 2016 Jul 19]. Available from: http://www.doria.fi/handle/10024/97740

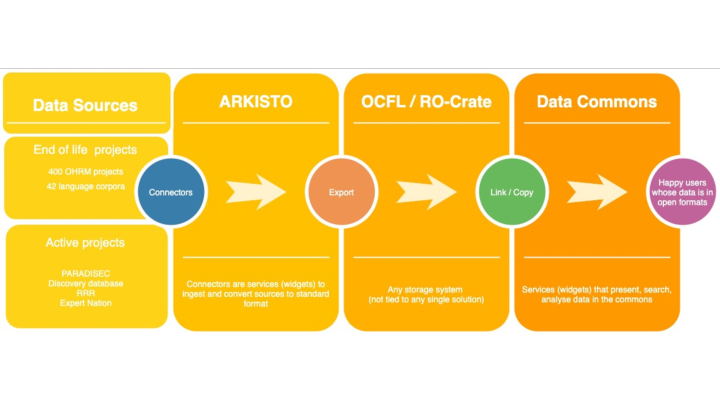

This diagram was used in the bid documents that established LDaCA - it shows the progression of data from end-of-life projects and active repositories into a standards-based data-commons.

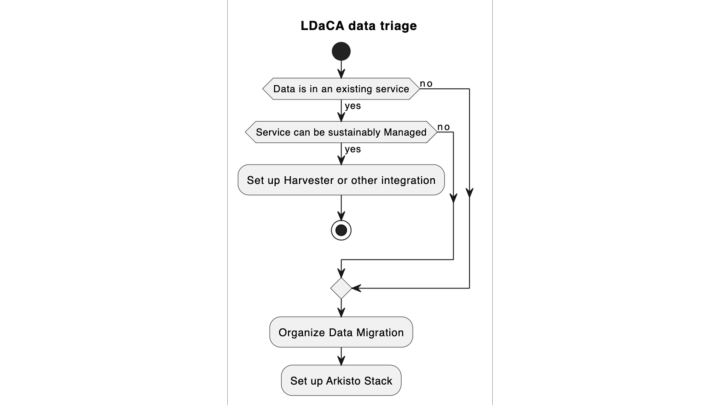

This is the data triage process we have been going through in LDaCA — and it should be noted that of all the data we are presented with, most of it needs to be reworked into the Arkisto Standards Stack. Even PARADISEC which in 2019 received the international Core Trust Seal based on the DSA-WDS Core Trustworthy Data Repositories Requirements is still in the process of migrating data to more sustainable formats.

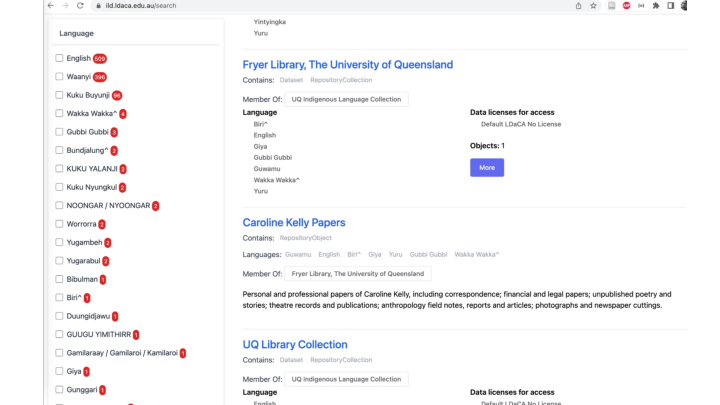

This is a taster of what data looks like in the kids of repositories we are talking about. This site contains harvested metadata about holdings on Australian Indigenous Languages in University of Queensland Libraries.


The LDaCA services we are building use an API to drive the data portals. The API can be used for direct access with appropriate access control – see another eResearch presentation which explains this in detail. These screenshots show code notebooks running in BinderHub on the Nectar cloud accessing language resources.

This work has also been written up for the 2nd International Workshop on Digital Language Archives (LangArc 2023) virtual workshop on digital language archives 2023-06-30.

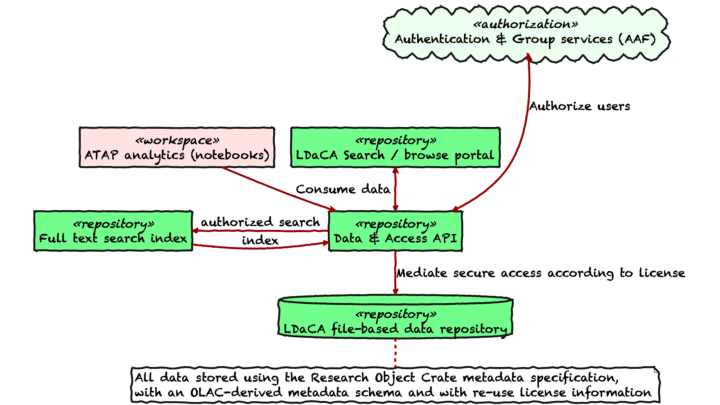

This is the overall architecture for data storage and delivery — missing is how data gets into to the repository, but we’ll come to that later.

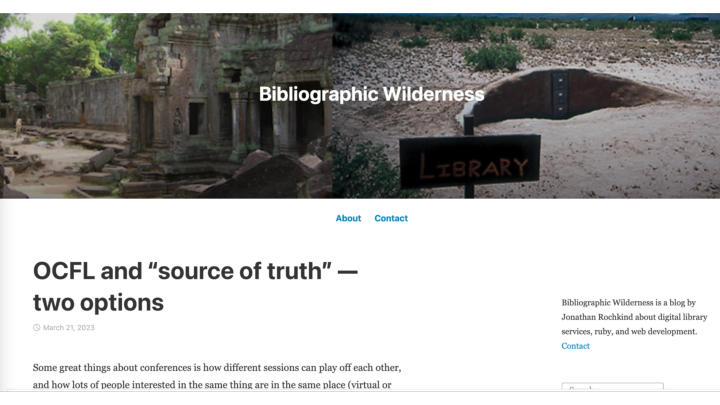

At this point, I will introduce one of the themes of this talk. In March this year, this blog post was published - looking at the pros and cons of using OCFL (the Oxford Common File Layout) as the “source of truth” for a system (say a repository).

We are very much taking the OCFL (that is file-in-storage-as-the-source-of-truth) approach in LDaCA. Which begs the question: “But doesn’t that mean that it’s very specific to language data?” No, because we’re using a very flexible, extensible, discipline-neutral format for data description – yes, we have ways to specialise metadata and interfaces to language and other cultural metadata, but NO, the systems are not locked-in to that mode of operation. This means we should be able to share development and maintenance more broadly than with a single archive.

Two main points we want to get across in this presentation:

  • We are taking seriously the idea that data-in-storage should be “batteries included” – everything needed to preserve and use the data is stored together and systems can be reconstituted from this storage.
  • This approach IS generic – different vocabularies/schemas can be plugged in by design.

📂  🔬 🔭 📹 💽 🖥️ ⚙️🎼🌡️🔮🎙️🔍🌏📡💉🏥💊🌪️

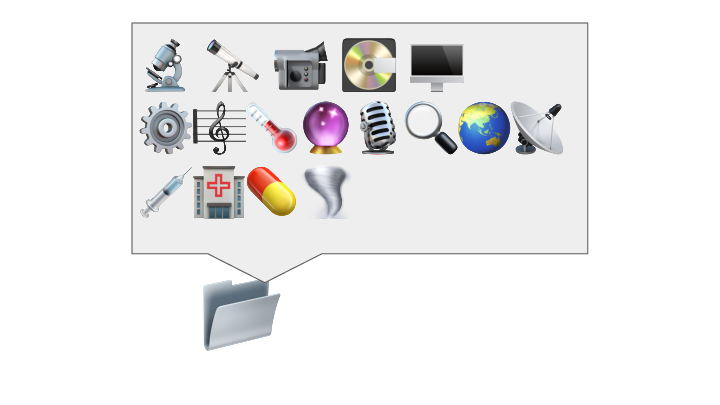

So let’s now start looking at the standards involved in the Arkisto approach. This is a slide from “What is RO-Crate” – The dataset may contain any kind of data resource about anything, in any format as a file or URL

Stian Soiland-Reyes, Peter Sefton, Mercè Crosas, Leyla Jael Castro, Frederik Coppens, José M. Fernández, Daniel Garijo, Björn Grüning, Marco La Rosa, Simone Leo, Eoghan Ó Carragáin, Marc Portier, Ana Trisovic, RO-Crate Community, Paul Groth, Carole Goble (2022): Packaging research artefacts with RO-Crate.Data Science 5(2)https://doi.org/10.3233/DS-210053


The core standard for this work is RO-Crate (Research Object Crate) in which all data is input, stored and output. This a big step for eresearch systems – no longer is there a transformation step on data onboarding (we used the term ingest, but some project members and partners found the metaphor distasteful).

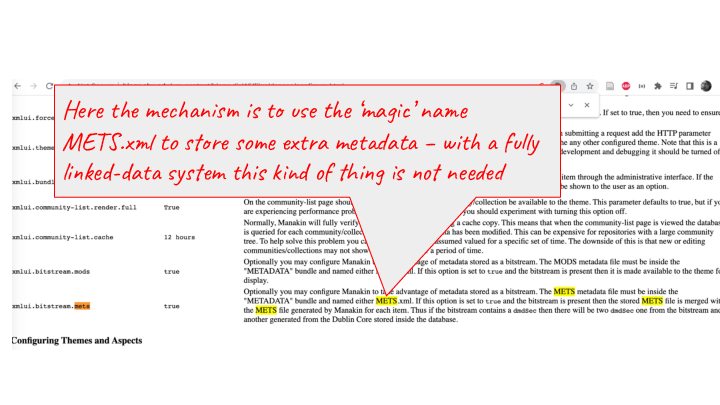

  Here the mechanism is to use the ‘magic’ name METS.xml to store some extra metadata – with a fully linked-data system this kind of thing is not needed

This screenshot is a bit of (undated) DSpace documentation found following a tip from Kim Sheppard – we have included it here to illustrate that storing additional metadata (in this case METS) for an object was done by convention. Using a linked-data system means that we no longer have to do this kind of thing – there’s still one magic file name in RO-Crate but it’s only one for the metadata and one for the HTML preview – everything else is labelled and extensible.

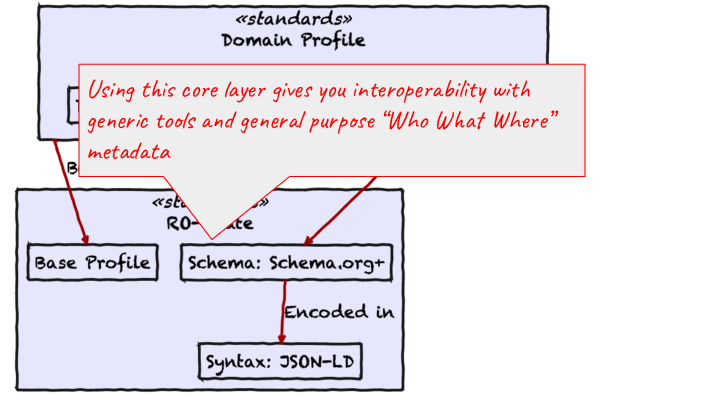

Using this core layer gives you interoperability with generic tools and general purpose “Who What Where” metadata

In the early days of the “Open Repositories” movement repositories had Dublin Core metadata (a standard with a few different flavours).

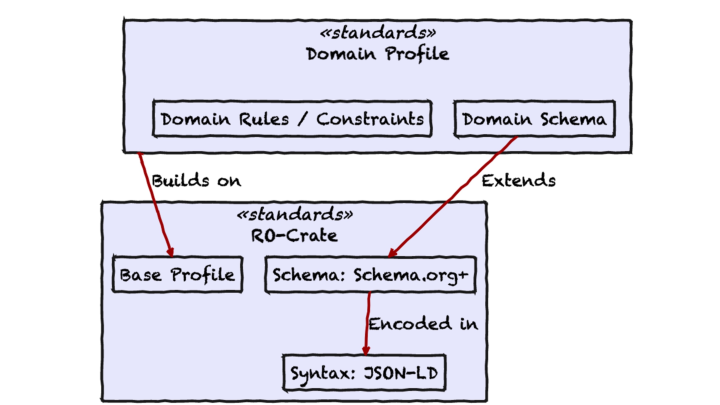

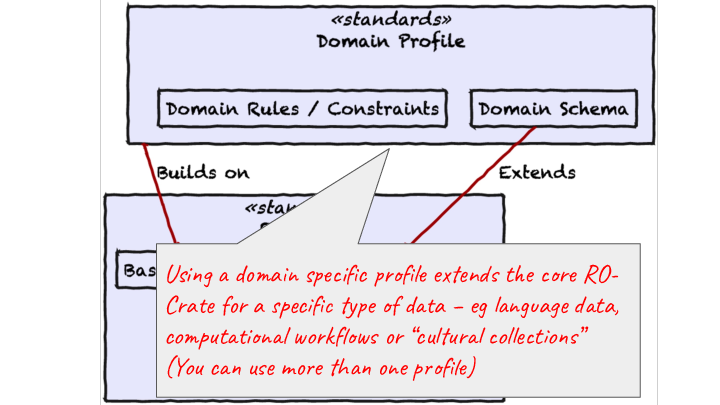

 Using a domain-specific profile extends the core RO-Crate for a specific type of data – e.g. language data, computational workflows or “cultural collections”  (You can use more than one profile)

These days using linked data it is no longer necessary to have a bevy of XML schemas with incompatible encodings to store data from different schemas, different vocabularies and ontologies can co-exist and be expressed in a common way.

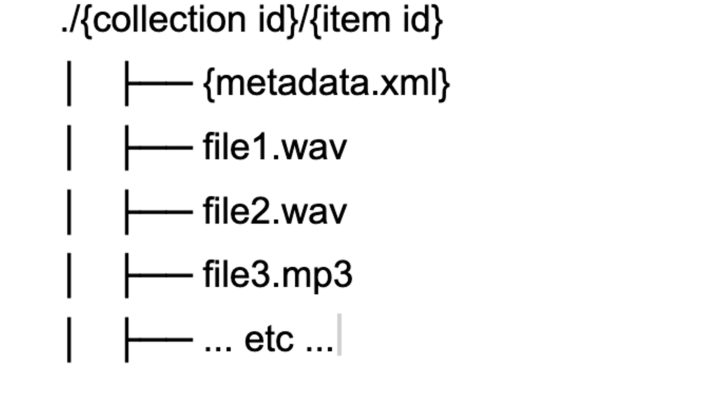

In the PARADISEC system, this is achieved by storing files on disk in a simple hierarchy - with metadata and other resources stored together in a directory - this scheme allows for hands-on management of data resources, independently of the software used to serve them.

This approach means that if the PARADISEC software-stack becomes un-maintainable for financial or technical reasons the important resources, the data, are stored safely on disk with their metadata and a new access portal could be constructed relatively easily.

Despite the valuable features of this solution, it is not generalisable. The metadata.xml is custom to PARADISEC, as is the software stack.

In 2019 PARADISEC and the eResearch team at UTS received small grants from the Australian National Data Service and began collaborating on an approach to managing archival repositories which built on this PARADISEC approach of storing metadata with data.

The UTS team presented on this at eResearch Australasia 2019

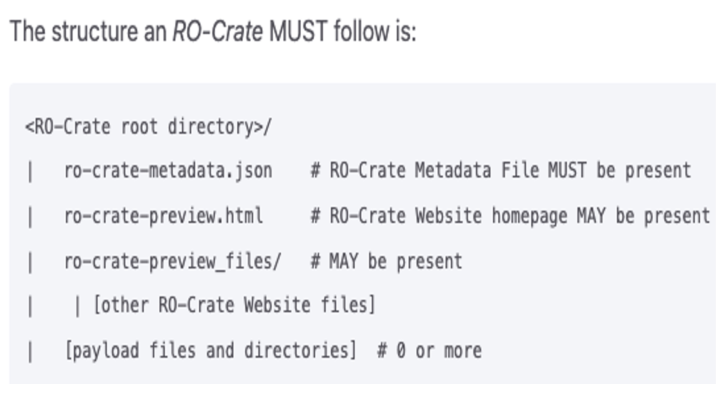

The structure of an RO-Crate is very similar to the PARADISEC example above, but with a JSON file instead of XML, and an optional preview in HTML.

RO-Crate has a growing number of tools and software libraries which means that a team such as PARADISEC does not have to maintain their own bespoke software.

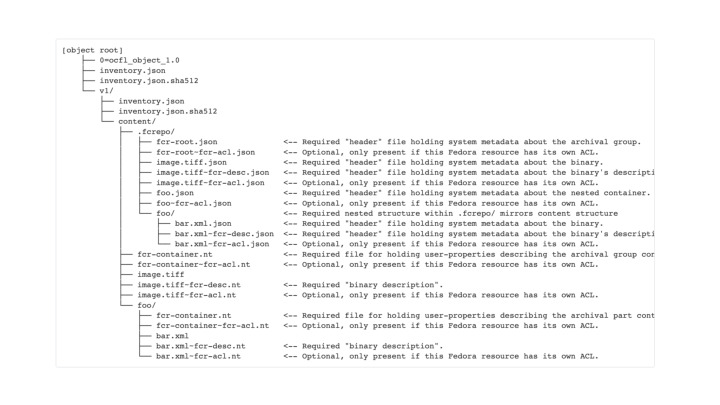

Here, for comparison is how Fedora 6 would store an object (an Atomic Resource in Fedora-speak) like this with multiple files. Like RO-Crate this uses linked-data but in this case, split up into multiple files containing RDF triples. (This is similar to the pre-RO-Crate approach taken by the Research Object spec).

This also shows some of what an OCFL repository looks like – this is an OCFL object with a single version.

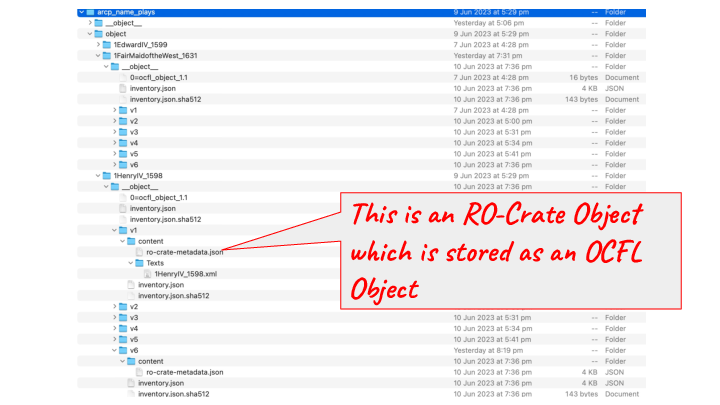

 This is an RO-Crate Object which is stored as an OCFL Object

This screenshot shows an example of an Arkisto-style use of OCFL (all of the metadata is stored in the ro-crate-metadata.json rather than spread out as in Fedora).

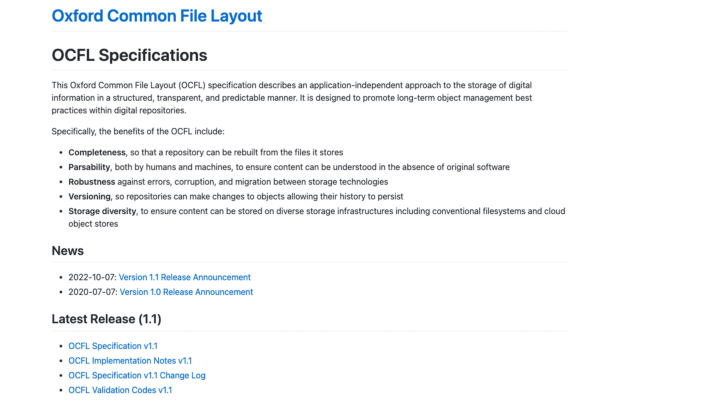

Now we come to the second core standard in our stack the Oxford Common File Layout – which is something we found out about via OpenRepositories – I couldn’t make the presentation, but I got a corridor briefing on this from Neil Jeffries in Bozeman at OR 2018.

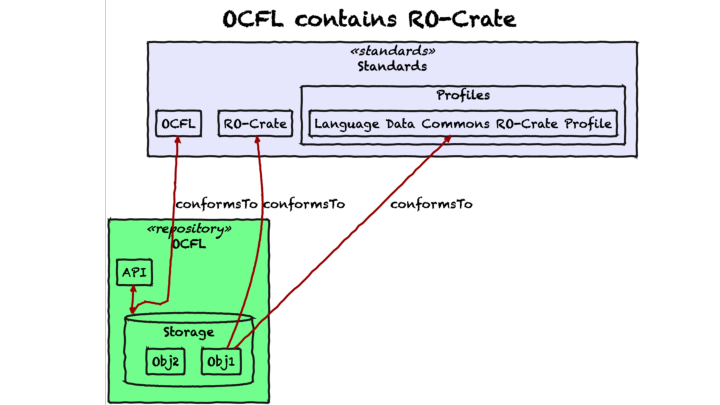

This slide shows the interface between our core standards – a compliant OCFL repository has Objects within it that conform to the RO-Crate specification.

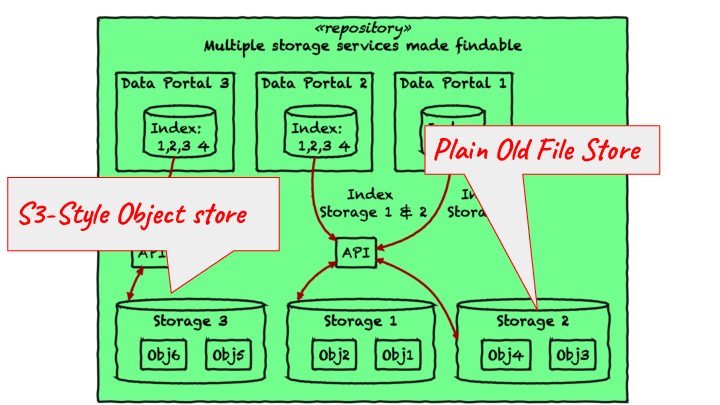

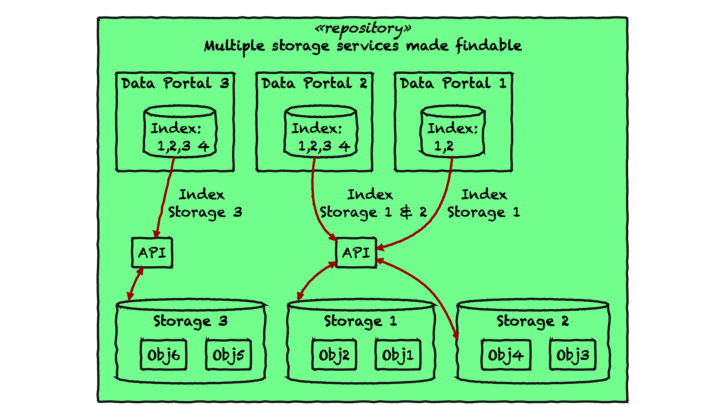

This slide illustrates the flexibility of the approach we’re taking. As LDaCA is a national project, our archival repositories and those of our partners such as PARADISEC will be distributed with differences of governance, varying by organisation, language type and discipline, though there is still a desire to be able to aggregate data into services that make it findable.


  S3-Style Object store Plain Old File Store

The storage services may not all be the same in this model, some may be file systems, some may be object stores, and they may be hosted by and governed by a variety of organisations.

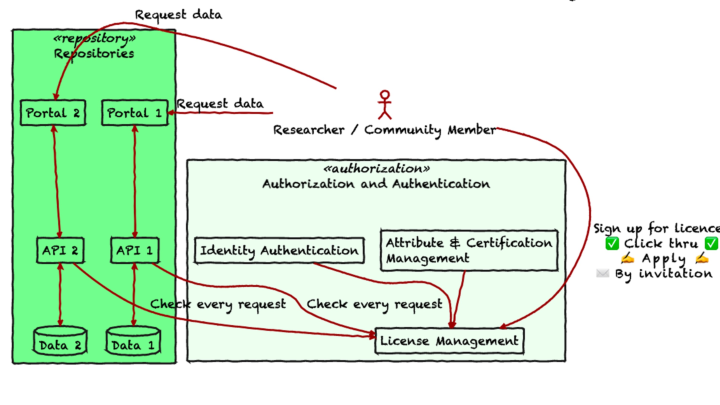

This slide shows how we have abstracted the “A” for Access in FAIR out of the repository and into a separate centralised or at least concentrated system. We have a full write-up of this approach from the 2022 eResearch Australasia conference and we don’t have time to go through it in detail here, but in summary:

  • Every object in the repository has a Data Reuse License with some management metadata.
  • Each repository only needs an authoritative list of licenses and trusted license management systems to be able to serve the data.
  • License management is handled by a dedicated system that can deal with application and invitation workflows to grant licenses (including simple self-serve click-through license agreements)

Note that our work is also informed by the CARE principles for Indigenous Data Governance (Collective benefit, Authority to control, Responsibility, Ethics) which frame the way FAIR protocols are implemented. Again, see the LangArc workshop write-up.


  Ok but how does the data get there?

Let’s revisit this diagram. What’s missing?

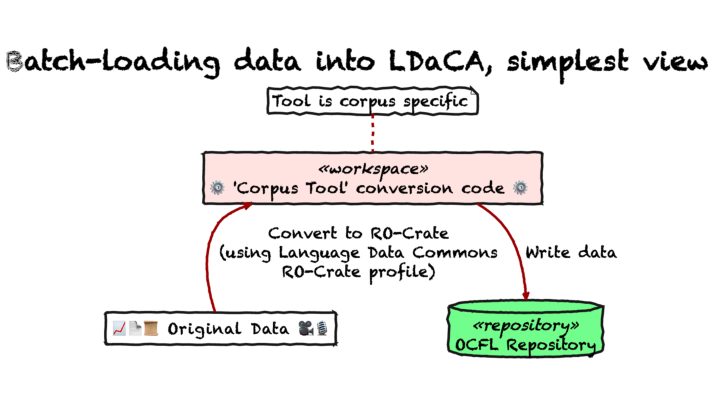

In the first phase of the LDaCA project, work focused on batch import of data using tools to convert collections – this approach was used on contemporary collections as well as for “rescuing” collections from older repository systems.


 {      "@id": "https://github.com/Language-Research-Technology/corpus-tools-ro-crate",      "@type": "SoftwareSourceCode",      "name": "https://github.com/Language-Research-Technology/corpus-tools-ro-crate",      "description": "Converts an RO-Crate to an LDaCA OCFL collection as long as the crate has repository Objects and Collections that are members of a RepositoryCollection in the root dataset",      "programmingLanguage": {        "@id": "https://en.wikipedia.org/wiki/Node.js"      }    },    {      "@id": "#provenance",      "name": "Created RO-Crate using corpus-tools-ro-crate",      "@type": "CreateAction",      "instrument": {        "@id": "https://github.com/Language-Research-Technology/corpus-tools-ro-crate"      },      "result": {        "@id": "ro-crate-metadata.json"      }    } The act of creation of this metadata is documented

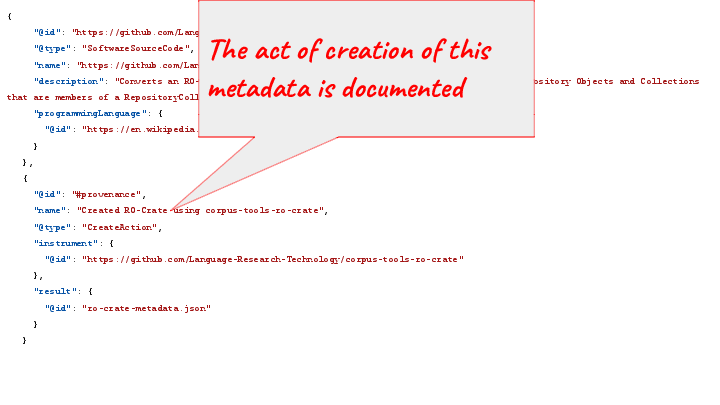

This slide shows some JSON-LD metadata that describes the way this RO-Crate metadata was created – illustrating how RO-Crate can be used to record provenance.

(UPDATE: I didn’t explain JSON-LD properly during the presentation. JSON-LD is a method of encoding linked-data (which can be quite esoteric and unapproachable) in JSON a method of describing data in simple text, which is widely used and understood by programmers.)


This part of the architecture we are working on now…

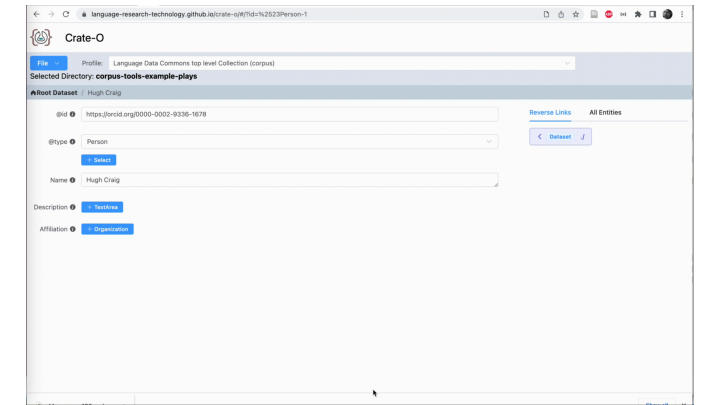

Here we see the Crate-O metadata tool (which is a zero-install web application that runs in Chrome and other browsers that support the new FilesystemAPI) being used to add an Organization as the Affiliation for a Person entity. Having imported this “Context Entity” (that’s the RO-Crate term) it can then be re-used within the crate which we see here as the schema.org publisher property is linked to the same organization.

(At this stage Crate-O is still to be connected to the repository stack - that will happen in the second half of 2023)


We hope to work with other editor projects (e.g. Describo) to make editor profiles as compatible as possible.


The next few slides show some examples of our approach implemented in a variety of contexts.

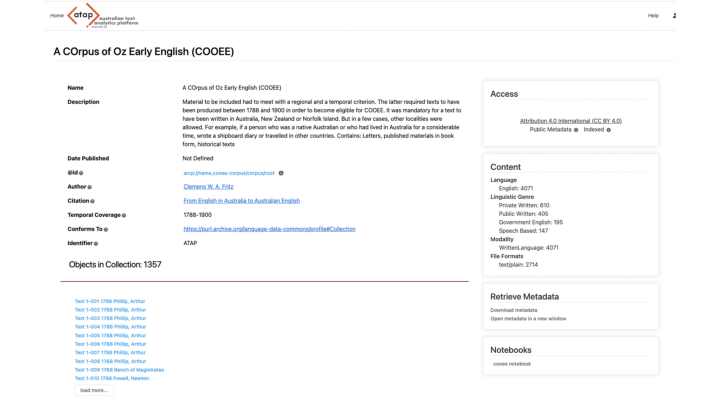

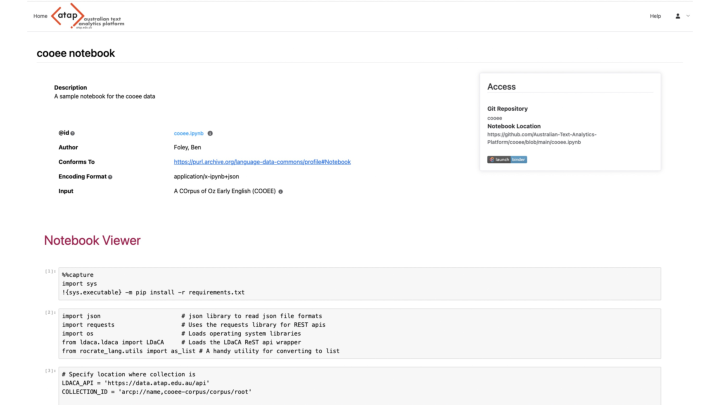

Here’s another repository that uses RO-Crate metadata (from the Language Data Commons of Australia/Australian Text Analytics Platform) – here users can launch a Jupyter notebook containing Python code (and explanatory text) that processes a dataset.


 SCREENSHOT OF NOTEBOOK

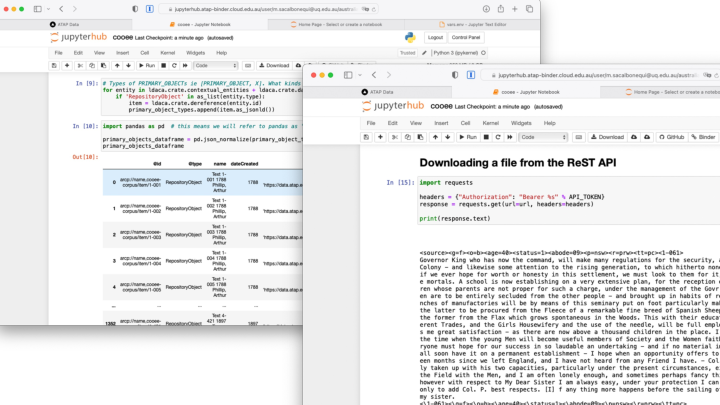

This is a screenshot of a Jupyter notebook that can process data from a repository via its API.

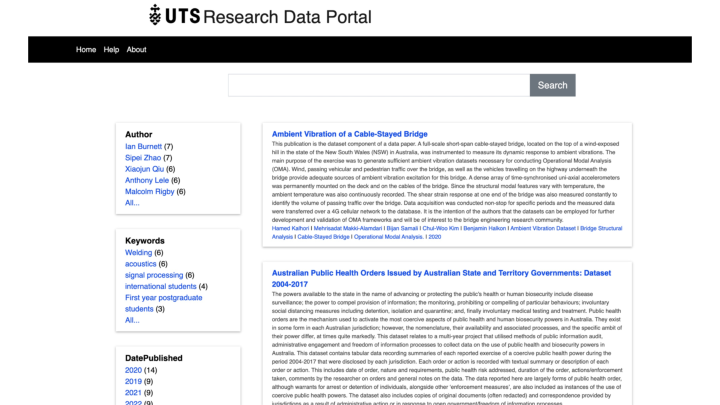

This slide shows the Arkisto stack powering the University of Technology Sydney’s Research Data Repository.

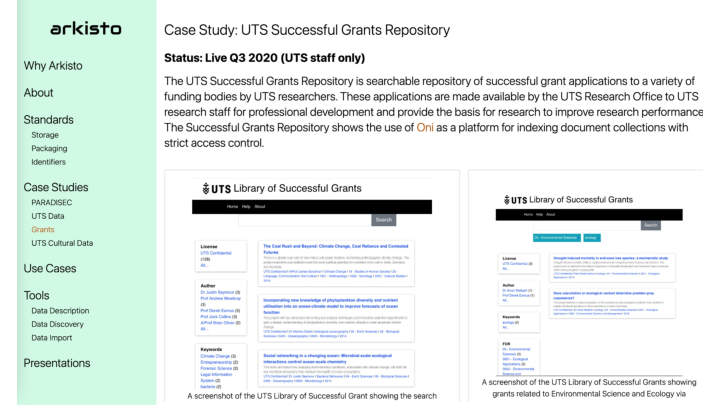

This page shows some screenshots of an internal-only application at UTS which gives academic staff access to successful research grant proposals – the data are stored in the same kind of Arkisto standards-based storage stack as we have presented here – with an interface that is tuned for this use case, with some custom access control to make sure that staff are very aware that these are sensitive and confidential documents.

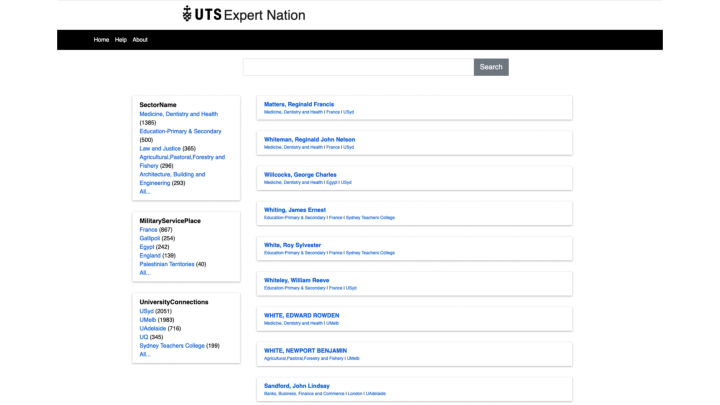

This is a screenshot of data from a history project Expert Nation exported to RO-Crate format and put online to support a book.

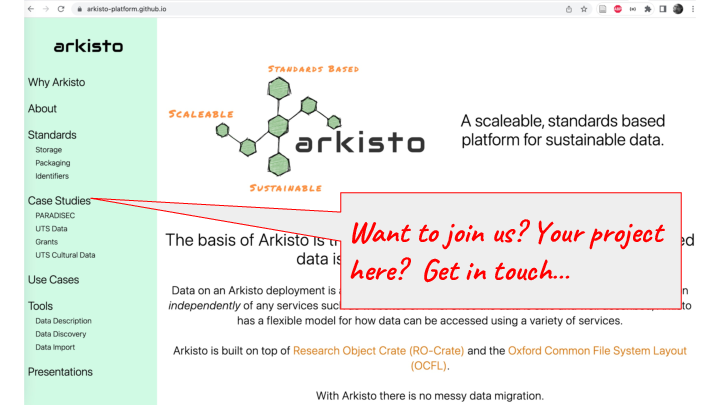

  Want to join us? Your project here?  Get in touch…

In conclusion, we have given a quick tour of a standards-based repository stack (loosely called Arkisto) and illustrated it with current work at the Language Data Commons of Australia and PARADISEC projects, but along the way have tried to emphasise that this is generic, re-usable architecture – and is based on standards. By using an extensible metadata standard with a growing community, and a storage-layer standard forged from an acquired aversion to systems migration we aim to reduce the risk to very important cultural data by working with as many communities as possible on software tools, so that we reduce cost and risk for all of us.
