HASS RDC Technical Advisory Group Meeting LDaCA & ATAP Intro

This is a presentation Peter Sefton gave to the Humanities, Arts and Social Sciences Research Data Commons and Indigenous Research Capability Program Technical Advisory Group on Friday 11th February 2022.

Thanks to Simon Musgrave for reviewing this and adding a little detail here and there.

(This is also available on Dr Sefton’s site)

PDF version


The Language Data Commons of Australia Data Partnerships (LDaCA) and the Australian Text Analytics Platform (ATAP) are establishing a scalable and flexible language data and analytics commons. These projects will be part of the Humanities and Social Sciences Research Data Commons (HASS RDC). The Data Commons will focus on preservation and discovery of distributed multi-modal language data collections under a variety of governance frameworks. This will include access control that reflects ethical constraints and intellectual property rights, including those of Aboriginal and Torres Strait Islander, migrant and Pacific communities.

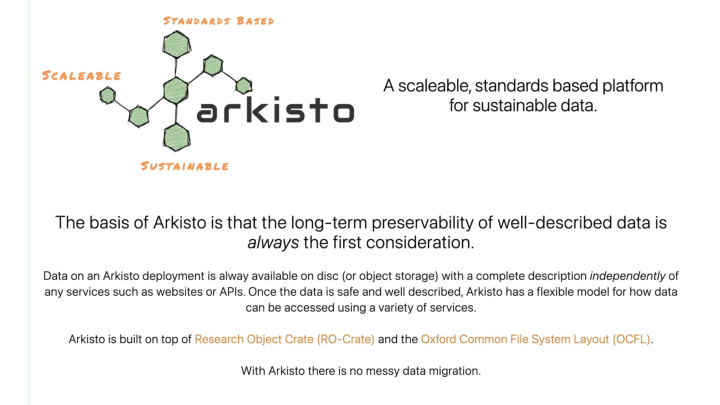

For this Research Data Commons work, we are using the Arkisto Platform (introduced at eResearch 2020).

Arkisto aims to secure the long-term preservation of data independently of code and services - recognizing the ephemeral nature of software and platforms. We know that sustaining software platforms can be hard and aim to make sure that important data assets are not locked up in a database or hard-coded logic of some hard-to-maintain application.

We are using three key standards on this project …

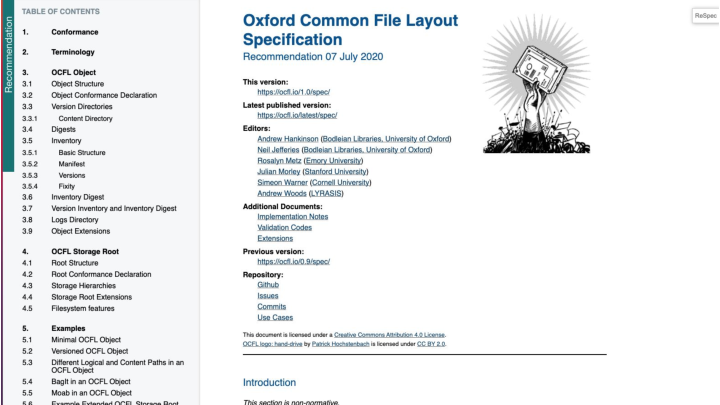

The first standard is the Oxford Common File Layout - this is a way of keeping version-controlled digital objects on a plain old filesystem or object store.

Here’s the introduction to the spec:


This section is non-normative.

This Oxford Common File Layout (OCFL) specification describes an application-independent approach to the storage of digital objects in a structured, transparent, and predictable manner. It is designed to promote long-term access and management of digital objects within digital repositories.


The OCFL initiative began as a discussion amongst digital repository practitioners to identify well-defined, common, and application-independent file management for a digital repository’s persisted objects and represents a specification of the community’s collective recommendations addressing five primary requirements: completeness, parsability, versioning, robustness, and storage diversity.


The OCFL recommends storing metadata and the content it describes together so the OCFL object can be fully understood in the absence of original software. The OCFL does not make recommendations about what constitutes an object, nor does it assume what type of metadata is needed to fully understand the object, recognizing those decisions may differ from one repository to another. However, it is recommended that when making this decision, implementers consider what is necessary to rebuild the objects from the files stored.


One goal of the OCFL is to ensure objects remain fixed over time. This can be difficult as software and infrastructure change, and content is migrated. To combat this challenge, the OCFL ensures that both humans and machines can understand the layout and corresponding inventory regardless of the software or infrastructure used. This allows for humans to read the layout and corresponding inventory, and understand it without the use of machines. Additionally, if existing software were to become obsolete, the OCFL could easily be understood by a lightweight application, even without the full feature repository that might have been used in the past.


Another need expressed by the community was the need to update and change objects, either the content itself or the metadata associated with the object. The OCFL relies heavily on the prior art in the [Moab] Design for Digital Object Versioning which utilises forward deltas to track the history of the object. Utilizing this schema allows implementers of the OCFL to easily recreate past versions of an OCFL object. Like with objects, the OCFL remains silent on when versioning should occur recognizing this may differ from implementation to implementation.


The OCFL also fills the need for robustness against errors, corruption, and migration. The versioning schema ensures an OCFL object is robust enough to allow for the discovery of human errors. The fixity checking built into the OCFL via content addressable storage allows implementers to identify file corruption that might happen outside of normal human interactions. The OCFL eases content migrations by providing a technology-agnostic method for verifying that OCFL objects have remained fixed.

Storage diversity Finally, the community expressed a need to store content on a wide variety of storage technologies. With that in mind, the OCFL was written with an eye toward various storage infrastructures including cloud object stores.

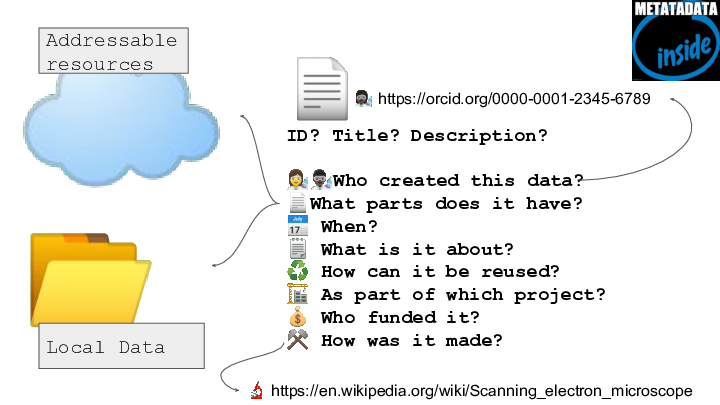

The second standard is Research Object Crate. (RO-Crate) a method for describing any dataset of local or remote resources as a digital object using a single linked-data metadata document.

RO-Crate is used in our platform both for describing data objects in the OCFL repository, and for delivering metadata over the API (which we’ll show in architecture diagrams and screenshots below).

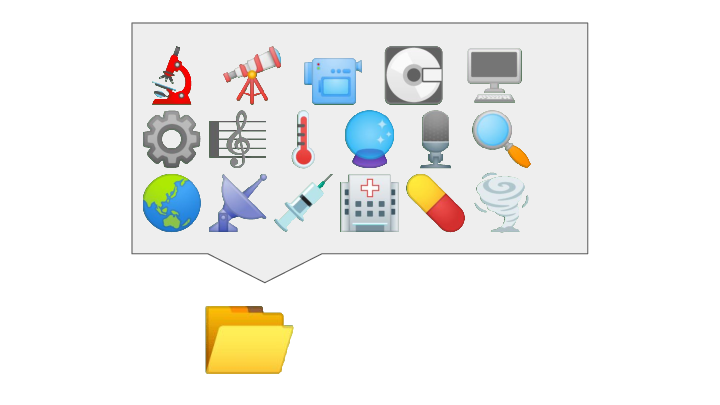

RO-Crates may contain any kind of data resource about anything, in any format as a file or URL - it’s not just for language data; there are also many projects in the sciences starting to use RO-Crate.


This image is taken from a presentation on digital preservation.

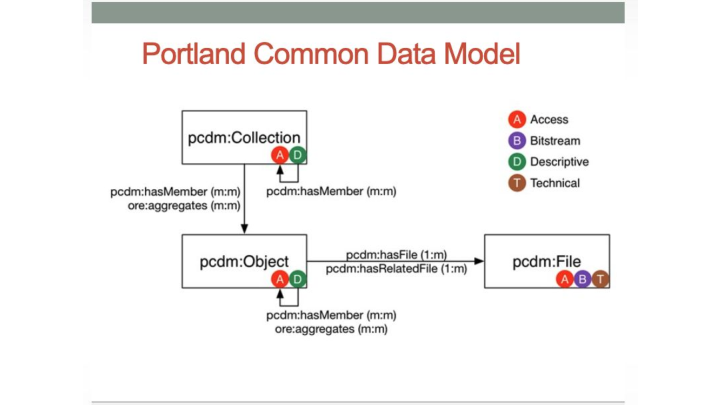

Models The third key standard for Arkisto is the Portland Common Data Model. Like OCFL, this was developed by members of the digital library/repository community. It was devised as a way to do interchange between repository systems, most of which, it turned out had evolved very similar ways of having nested collections, digital objects that aggregate related files. Using this very simple ontology allows us to store data in the OCFL layer in a very flexible way - depending on factors like data size, licensing and whether data is likely to change or need to be withdrawn, we can store entire collections as OCFL objects or across many OCFL objects with PCDM used to show the structure of the data collections regardless of how they happen to be stored.


Back to RO-Crates.

RO-Crates are self-documenting and can ship with an HTML file that allows a consumer of the crated data to see whatever documentation the crate authors have added.

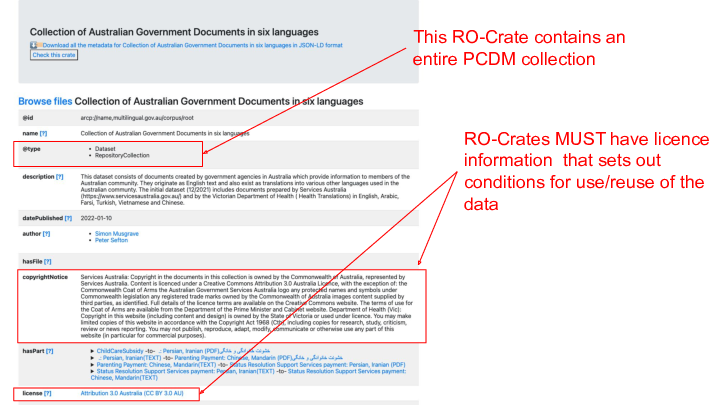

This crate contains an entire collection (RepositoryCollection is the RO- Crate term that corresponds to pcdm:Collection).

Crates must have license information that set out how data may be used and if it may be redistributed. As we are dealing with language data which is (almost ) always created by people, it is important that their intellectual property rights and privacy are respected. More on this later.

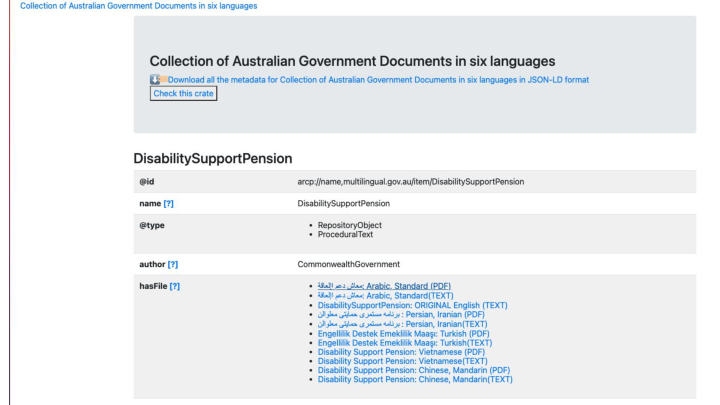

This shows a page for what we’re calling an Object (RepositoryObject). A RepositoryObject is a single “thing” such as a document, a conversation, or a session in a speech study. (this was called an item in Alveo but given that both the Portland Common Data model and Oxford Common File Layout use “Object ” we are using that term at least for now).

This shows that the system is capable of dealing with Unicode characters - which is good, as you would expect as it’s 2022 and this is a Language Data Commons, but there are still challenges, like dealing with mixtures of left to right and right to left text, and we need to find or define metadata terms to keep track of “language”, “writing system”, and the difference between things that started as orthographic (written) text, vs spoken or signed etc. There’s a group of us working on that, currently led by Nick Thieberger and Peter Sefton.

Simon Musgrave and Peter Sefton presented our progress with multilingual text at a virtual workshop run by ANU in January.

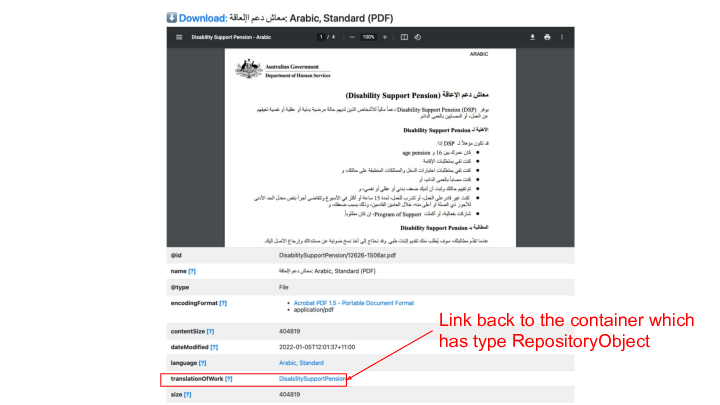

Here’s another screenshot showing one of the government documents in PDF format - with a link back to the abstract RepositoryObject that houses all of the manifestations of the document in various languages.

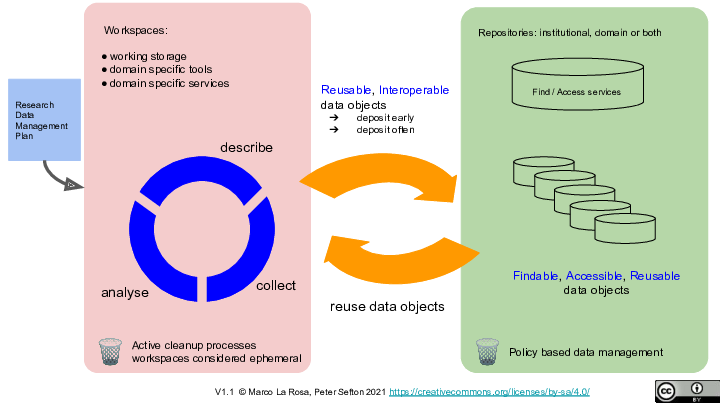

The above diagram takes a big-picture view of research data management in the context of doing research. It makes a distinction between managed repository storage and the places where work is done - “workspaces”. Workspaces are where researchers collect, analyse and describe data. Examples include the most basic of research IT services, file storage as well as analytical tools such as Jupyter notebooks (the backbone of ATAP - the text analytics platform). Other examples of workspaces include code repositories such as GitHub or GitLab (a slightly different sense of the word repository), survey tools, electronic (lab) notebooks and bespoke code written for particular research programs - these workspaces are essential research systems but usually are not set up for long-term management of data.

The cycle in the centre of this diagram shows an idealised research practice where data are collected, described and deposited into a repository frequently. Data are made findable and accessible as soon as possible and can be “re-collected” for use and re-use.

For data to be re-usable by humans and machines (such as ATAP notebook code that consumes datasets in a predictable way) it must be well described. The ATAP and LDaCA approach to this is to use the Research Object Crate (RO-Crate ) specification. RO-Crate is essentially a guide to using a number of standards and standard approaches to describe both data and re-runnable software such as workflows or notebooks.

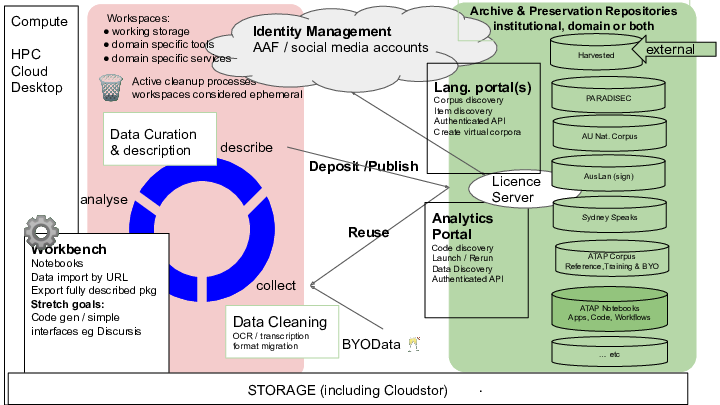

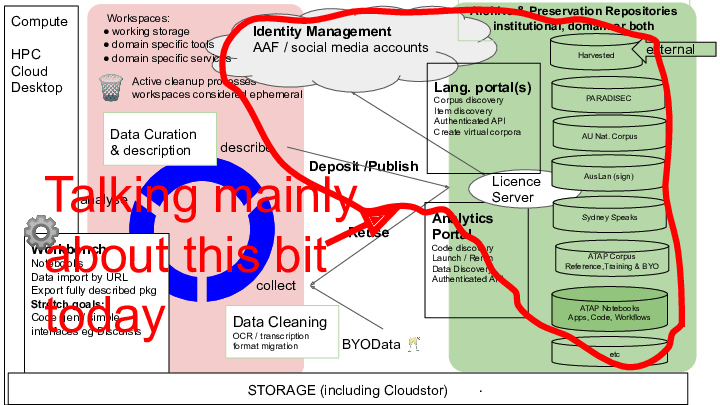

This rather messy slide captures the overall high-level architecture for the LDaCA Research Data Commons - there will be an analytical workbench (left of the diagram) which is the basis of the Australian Text Analytics (ATAP) project - this will focus on notebook-style programming using one of the emerging Jupyter notebook platforms in that space. (This is not 100% decided yet, but that has not stopped the team from starting to collect and develop notebooks that open up text analytics to new coders from the linguistics community.) Our engagement lead, Dr Simon Musgrave sees the ATAP work as primarily an educational enterprise encouraging researchers to adopt new research practices - which will be underpinned by services built on the Arkisto standards that allow for rigorous, re-runnable research.


In this presentation, we are going to focus on the portal/repository architecture more than on the ATAP notebook side of things. We know that we will be using (at least) the SWAN Jupyter notebook service perceived by AARNet but we are still scoping how notebooks will be made portable between systems and where they will be stored at various stages of their development. We will be supporting and encouraging researchers to archive notebooks wrapped in RO-Crates with re-use information OUTSIDE of the SWAN platform though - it’s a workspace, not a repository; it does not have governance in place for long-term preservation.

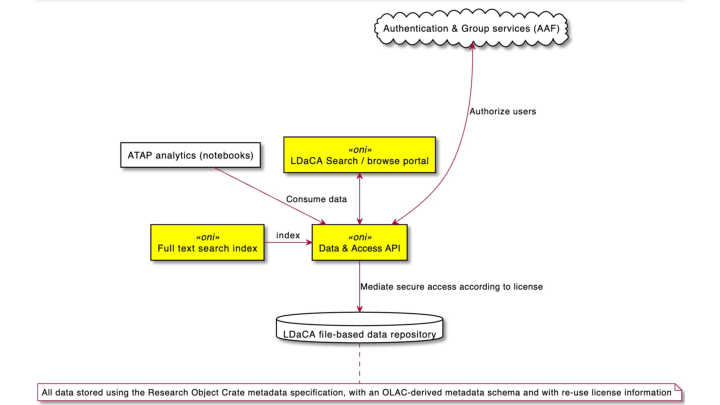

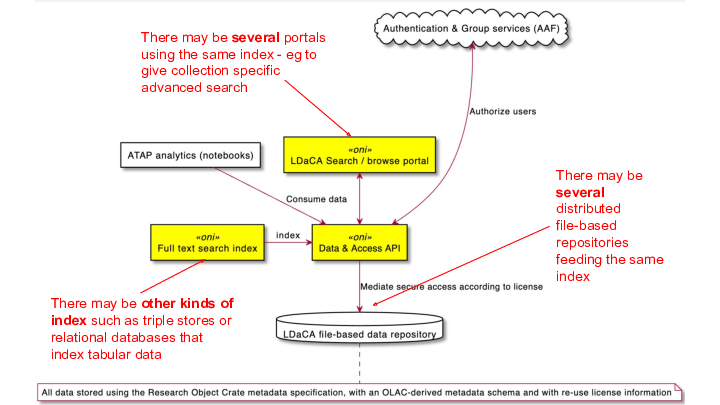

This is a much simpler view zooming in on the core infrastructure components that we have built so far. We are starting with bulk ingest of existing collections and will add one-by-one deposit of individual items after that.

This shows the OCFL repository at the bottom - with a Data & Access API that mediates access. This API understands the RO-Crate format and in particular its use of the Portland Common Data Model to structure data. The API also enforces access control to objects; every repository object has a license setting out the terms of use and re-use for its data, which will reflect the way the data were collected - whether participants signed agreements, ethics approvals and privacy law are all relevant here. Each license will correspond to a group of people who have agreed to and/or been selected by a data custodian. We are in negotiations with the Australian Access Federation (AAF) to use their CILogon service for this authorization step and for authentication of users across a wide variety of services including the AAF itself and Google, Microsoft, GitHub etc.

There’s also an access portal which will be based on a full-text index (at this stage we’re using ElasticSearch) which is designed to help people find data they might be interested in using. This follows current conventions for browse/search interfaces which we’re familiar with from shopping sites - you can search for text and/or drill down using facets (which are called aggregations in Elastic-land). e.g. which language am interested in or do I want [ ] Spoken or [ ] Written material?


This architecture is very modular and designed to operate in a distributed fashion, potentially with distributed file and/or object-based repositories all being indexed by a centralised service. There may also be other ‘flavours’ of index such as triple or graph stores, relational databases that ingest tabular data or domain-specific discovery tools such as corpus analysis software. And, there may be collection-specific portals that show a slice of a bigger repository with features or branding specific to a subset of data.

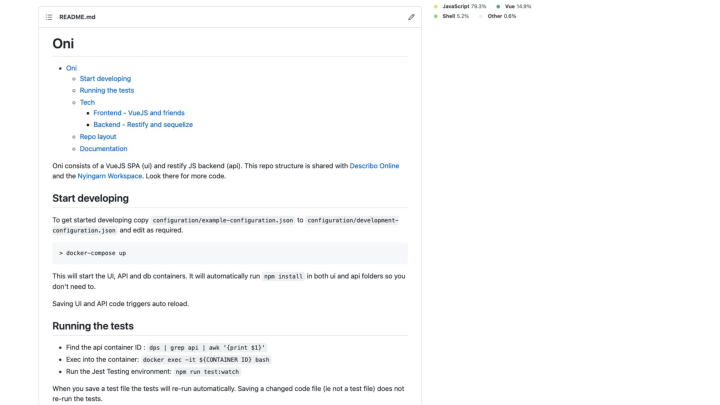

This implementation of the Arkisto standards-stack is known as Oni. That’s not really an acronym anymore though it once stood for OCFL, Ngnix (a web server) or Node (a Javascript framework) and an Index. An Oni is a kind of Japanese demon. 👹


But how will data get into the OCFL repository? At the moment we’re loading data using a series of scripts which are being developed at our github organisation.

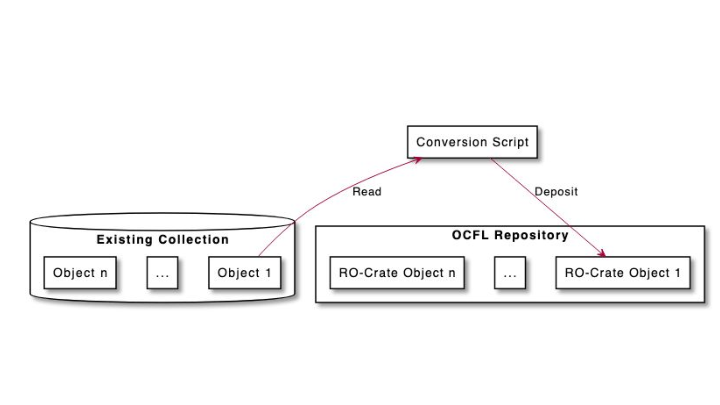

This diagram and the next come from the Arkisto Use cases page. It shows how we will be converting data from existing collections into a form where they can be preserved in an OCFL repository and be part of a bigger collection, ALWAYS with access control based on licenses.

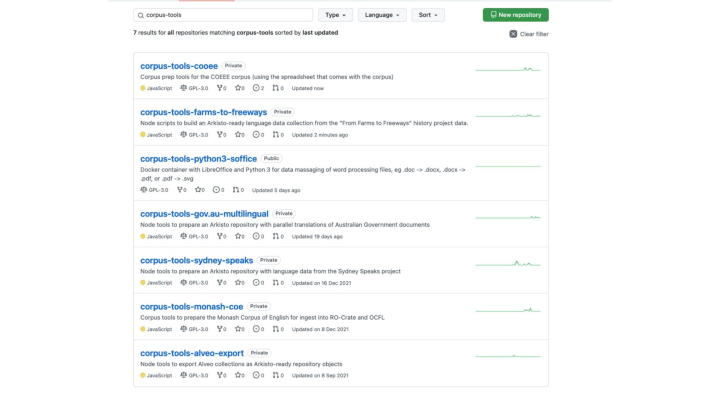

This is a screenshot of our GitHub repository showing the corpus migration tools we’ve started developing (there are six, and one general purpose text- cleaning tool). These repositories have not all been made public yet, but they will be - they contain tools to build Arkisto-ready file repositories that can be made available in one or more portals


Here’s our portal which gives a browse interface to allow drill-down data discovery.

But wait! That’s not the LDaCA portal - that’s Alveo!

Oh yes, so it is.

Alveo was built ten years ago - and has not seen much uptake.

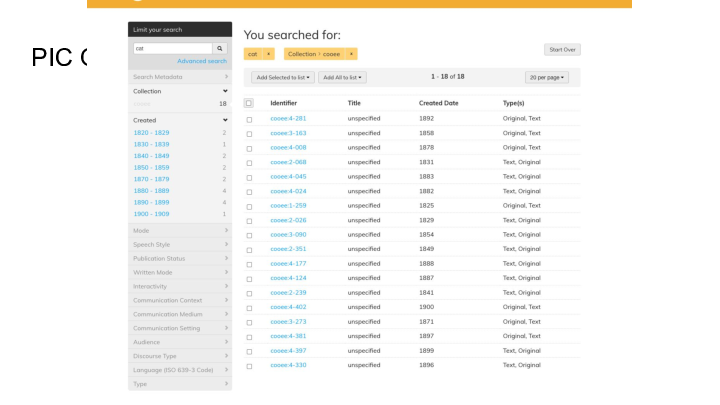

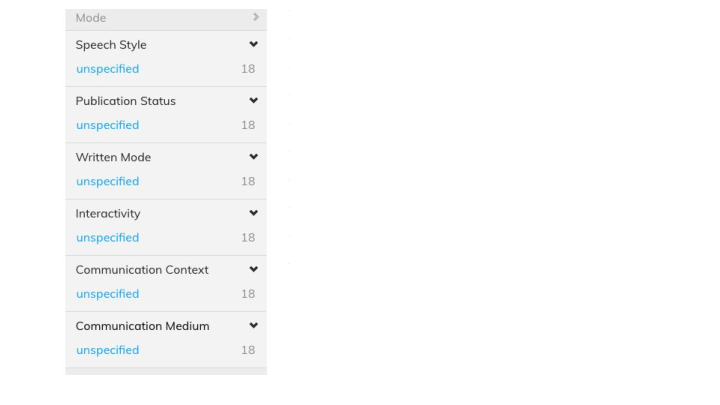

This screenshot shows some of the browse facets for the COOEE corpus, which contains early Australian written English materials. But facets like Written Mode and Communication Medium both of which are known for COOEE are not populated.

There are a quite few things that were wrong with Alveo - like we obviously didn’t get all the metadata populated to the level that it would make these browse facets actually useful for filtering. But more importantly, there was not enough work done to check which browse facets are useful and not enough of the budget was able to be spent on user engagement and training rather than software development.

One of my current LDaCA senior colleagues said to me a couple of years ago that Alveo was useless: “I just wanted to get all the data” they said. Me, I was thinking “but it has an API so you CAN get all the data - what’s the problem?”. We have tried not to repeat this mistake by making sure that the API delivers entire collections and we have some demonstrations of doing this for real work.

Another colleague who was actually on the Alveo team said that this interface was “equally useless for everyone”, and they later built a custom interface for one of the collections.

We’re taking these lessons to heart in designing the LDaCA infrastructure - making sure that as we go we have people using the software - it helps that we have an in-house (though distributed) development team rather than an external contractor so feedback is very fast - we can jump onto a call and demo stuff at any time.


We decided to build from the data API first.

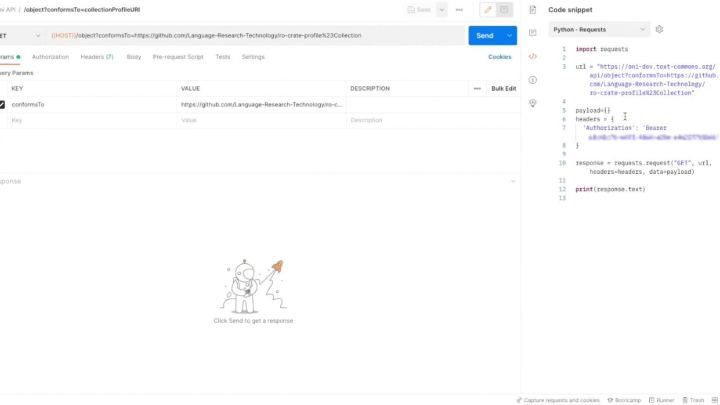

In this demo developer Moises Sacal Bonequi is looking at the API via the Postman tool. This demonstration shows how the API can be used to find collections (that conform to our metadata profile)

  1. First, he lists the collections, then chooses one.
  2. He then gets a collection with the &resolve parameter, meaning that the API will internally traverse the PCDM collection hierarchy and return ALL the metadata for the collection - down to the file level.
  3. He then downloads a file (for which he has a license that most of you reading this don’t have - hence the obfuscation of the dialogue).

This API has been used and road tested at ANU to develop techniques for topic modelling on the Sydney Speaks corpus (more about which corpus below) - by a student Marcel Reverter-Rambaldi under the supervision of Prof Catherine Travis at ANU - we are hoping to publish this work as a re-usable notebook that can be adapted for other projects, and to allow the techniques the ANU team have been developing to be applied to other similar data in LDaCA.

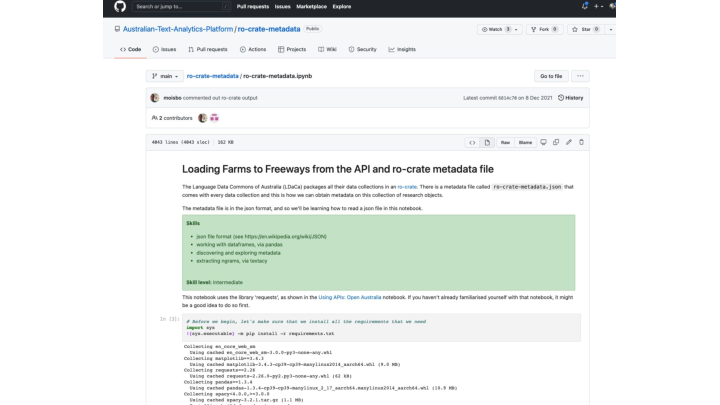

And one of the data scientists who was working with us at UQ, Mel Mistica, developed a demonstration notebook with our tech team that used the API to access another full collection (which is also suitable for the ANU topic modelling approach) - this notebook gets all the metadata for a small social history collection which contains transcribed interviews with women in Western Sydney and shows how a data scientist might explore what’s in it and start asking questions about the data, like the age distribution of the participants and start digging in to what they were talking about.

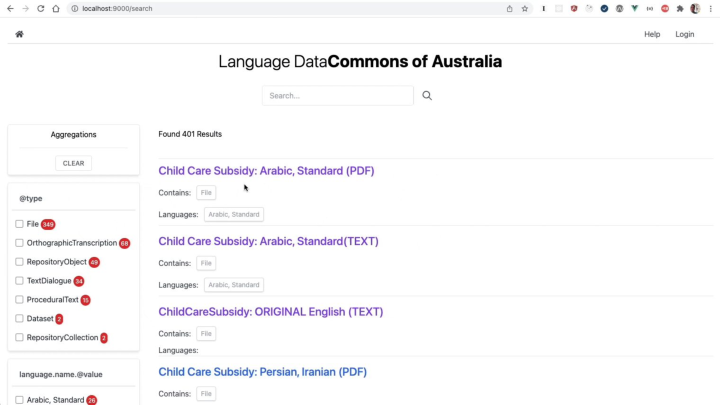

This screencast shows a work-in-progress snapshot of the Oni portal we talked about above in action, showing how search and browse might be used to find repository objects from the index - in this case, searching for Arabic words in a small set of Australian Government documents.


Hang on!

You keep talking about “repositories”, don’t you always say stuff like, “A repository is not just a software application. It’s a lifestyle. It’s not just for Christmas?”

That’s right - we’ve been talking about repository software architectures here but it is important to remember that a repository needs to be considered an institution rather than a software stack or collection of files, more “University Library” than “My Database”.


The next half a dozen slides are based on a presentation I gave at eResearch Australasia 2021 with Moises Sacal Bonequi

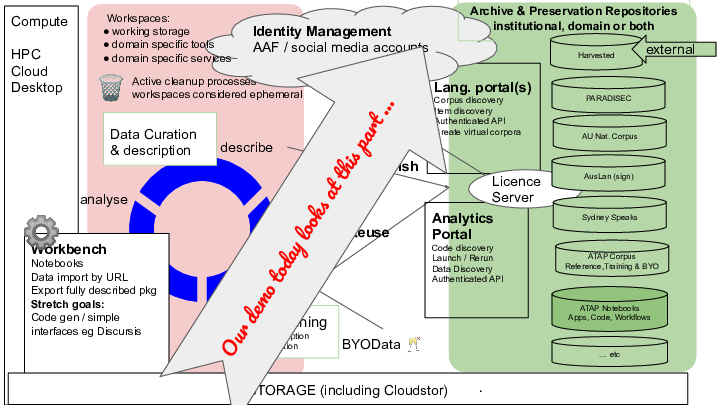

Today we will look in detail at one important part of this architecture - access control. How can we make sure that in a distributed system, with multiple data repositories and registries residing with different data custodians, the right people have access to the right data?

I didn’t spell this out in the recorded conference presentation, but for data that resides in the repositories at the right of the diagram we want to encourage research processes that clearly separate data from code. Notebooks and other code workflows that use data will fetch a version-controlled reference copy from a repository - using an access key if needed, process the data and produce results that are then deposited into an appropriate repository alongside the code itself. Given that a lot of the data in the language world is NOT available under open licenses such as Creative Commons it is important to establish this practice - each user of the data must negotiate or be granted access individually. Research can still be reproducible using this model, but without a culture of sharing datasets without regard for the rights of those who were involved in the creation of the data.

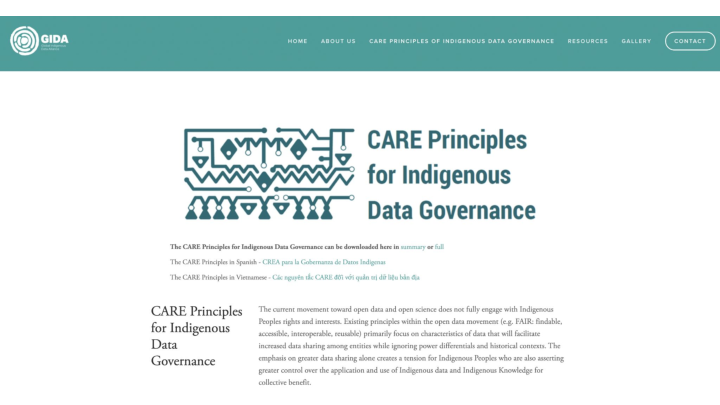

Regarding rights, our project is informed by the CARE principles for Indigenous data.

The current movement toward open data and open science does not fully engage with Indigenous Peoples’ rights and interests. Existing principles within the open data movement (e.g. FAIR: findable, accessible, interoperable, reusable) primarily focus on characteristics of data that will facilitate increased data sharing among entities while ignoring power differentials and historical contexts. The emphasis on greater data sharing alone creates a tension for Indigenous Peoples who are also asserting greater control over the application and use of Indigenous data and Indigenous Knowledge for collective benefit

But we do not see the CARE principles as only applying to Indigenous data and knowledge. Most language data is a record of the behaviour of people who have moral rights in the material (even if they do not have legal rights) and taking the CARE principles as relevant in such cases ensures serious thinking about the protection of those moral rights.


Traditional Knowledge Labels

We are designing the system so that it can work with diverse ways of expressing access rights, for example, licensing like the Tribal Knowledge labels. The idea is to separate safe storage of data with a license on each item, which may reference the TK labels from a system that is administered by the data custodians who can make decisions about who is allowed to access data.

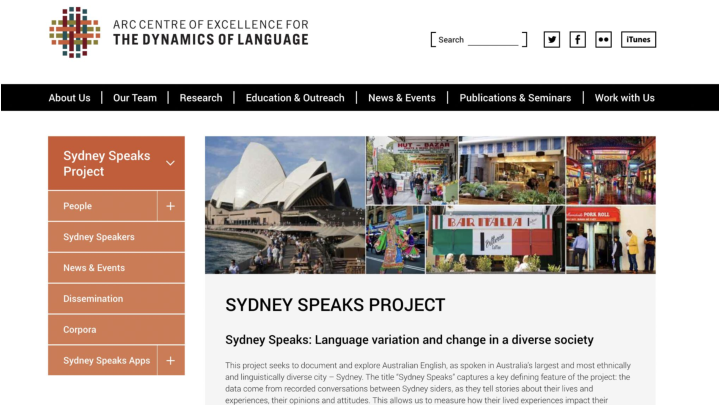

We are working on a case study with the Sydney Speaks project via steering committee member Catherine Travis.

This project seeks to document and explore Australian English, as spoken in Australia’s largest and most ethnically and linguistically diverse city – Sydney. The title “Sydney Speaks” captures a key defining feature of the project: the data come from recorded conversations between Sydney siders, as they tell stories about their lives and experiences, their opinions and attitudes. This allows us to measure how their lived experiences impact their speech patterns. Working within the framework of variationist sociolinguistics, we examine variation in phonetics, grammar and discourse, in an effort to answer questions of fundamental interest both to Australian English, and language variation and change more broadly, including:

  • How has Australian English as spoken in Sydney changed over the past 100 years?
  • Has the change in the ethnic diversity over that time period (and in particular, over the past 40 years) had any impact on the way Australian English is spoken?
  • What affects the way variation and change spread through society - Who are the initiators and who are the leaders in change? - How do social networks function in a modern metropolis? - What social factors are relevant to Sydney speech today, and over time (gender? class? region? ethnic identity?) A better understanding of what kind of variation exists in Australian English, and of how and why Australian English has changed over time can help society be more accepting of speech variation and even help address prejudices based on ways of speaking. Source: http://www.dynamicsoflanguage.edu.au/sydney-speaks/

The collection contains recordings of people speaking both contemporary and historic.

Because this involved human participants there are restrictions on the distribution of data - a situation we see with lots of studies involving people in a huge range of disciplines.


There are four tiers of data access we need to enforce and observe for this data based on the participant agreements and ethics arrangements under which the data were collected.

Concerns about rights and interests are important for any data involving people - and a large amount of the data both Indigenous and non-Indigenous we are using will require access control that ensures that data sharing is appropriate.


In this example demo we uploaded various collections and are authorising with GitHub organisations.

In our production release, we will use AAF to authorise different groups.

Let’s find a dataset: The Sydney Speaks Corpus.

As you can see we cannot see any data.

Let’s login… We authorise GitHub

Now you can see we have access to sub-corpus data and I am just opening a couple of items.

Now in GitHub we can see the group management example.

I have given access to all the licenses to myself, as you can see here and given access to license A to others.

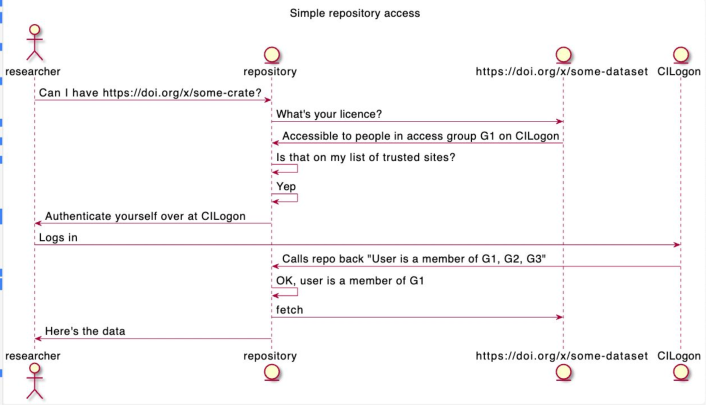

This diagram is a sketch of the interaction that took place in the demo - it shows how a repository can delegate authorization to an external system - in this case, GitHub rather than CILogon. But we are working with the ARDC to set up a trial with the Australian Access Federation to allow CILogon access for the HASS Research Data Commons so we can pilot group-based access control.

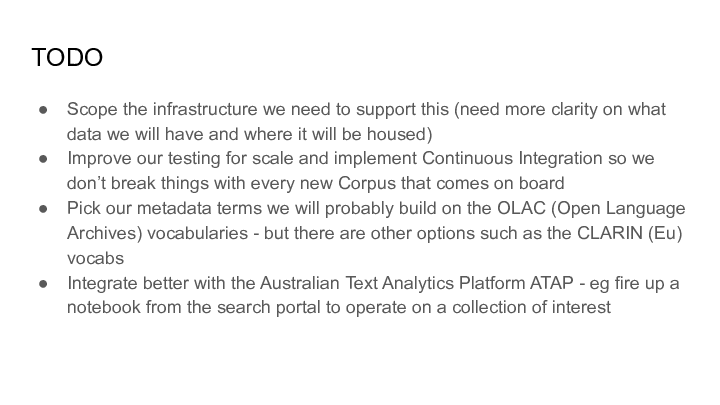

There’s a lot still to do.
